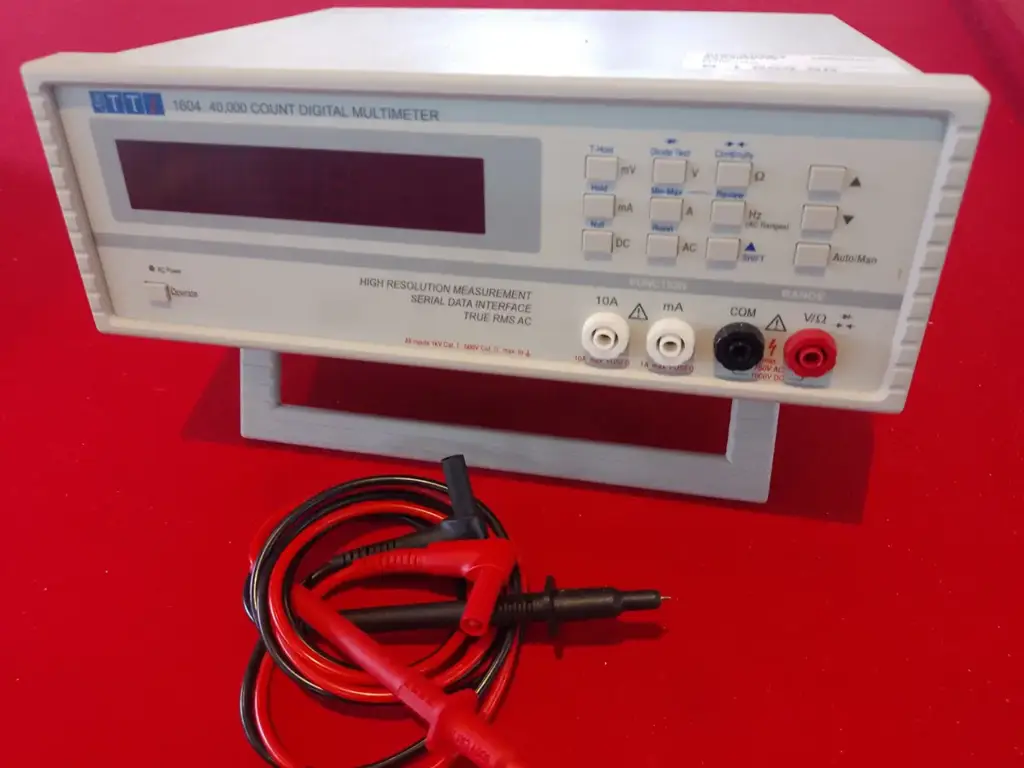

Aim-Tti 1604 Bench Digital Multimeter

The 1604 is a low-cost auto/manual ranging bench-top DMM with a large and bright LED display. It offers 4¾ digit (40,000 count) scale length, true RMS ac measurements, a basic accuracy of 0.08% and a resolution of 10µV, 10mOhms and 0.1µA. The 1604 incorporates several "smart" functions such as Relative measurement and Minimum-Maximum storage. The T-Hold function enables readings to be held on the display automatically each time a new test point is probed. 40,000 count, auto/manual ranging Basic d.c. V accuracy 0.08% Resolution 10µV, 10mohm, 0.1µA Large bright LED display (14mm/0.56") Current measurement up to 10 amps True RMS as functions, wide ac bandwidth Frequency measurement function Relative, T-Hold and Min-Max functions Isolated RS232 interface as standard Safety EN6101-1, EMC 50081-1, EN50082-1
