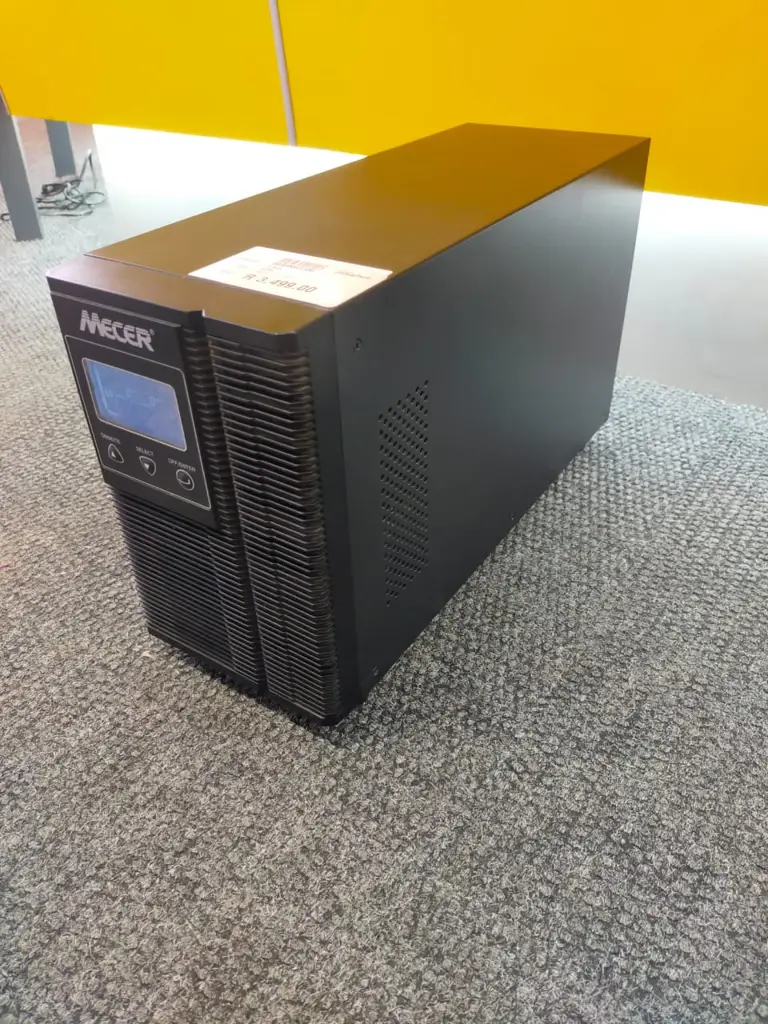

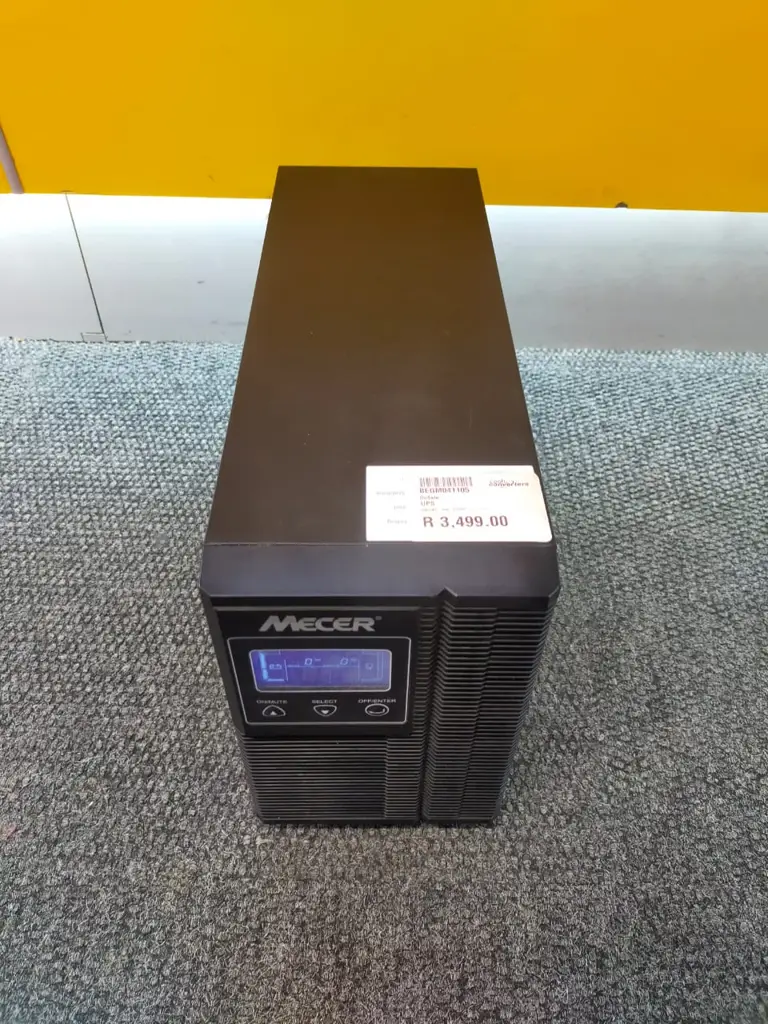

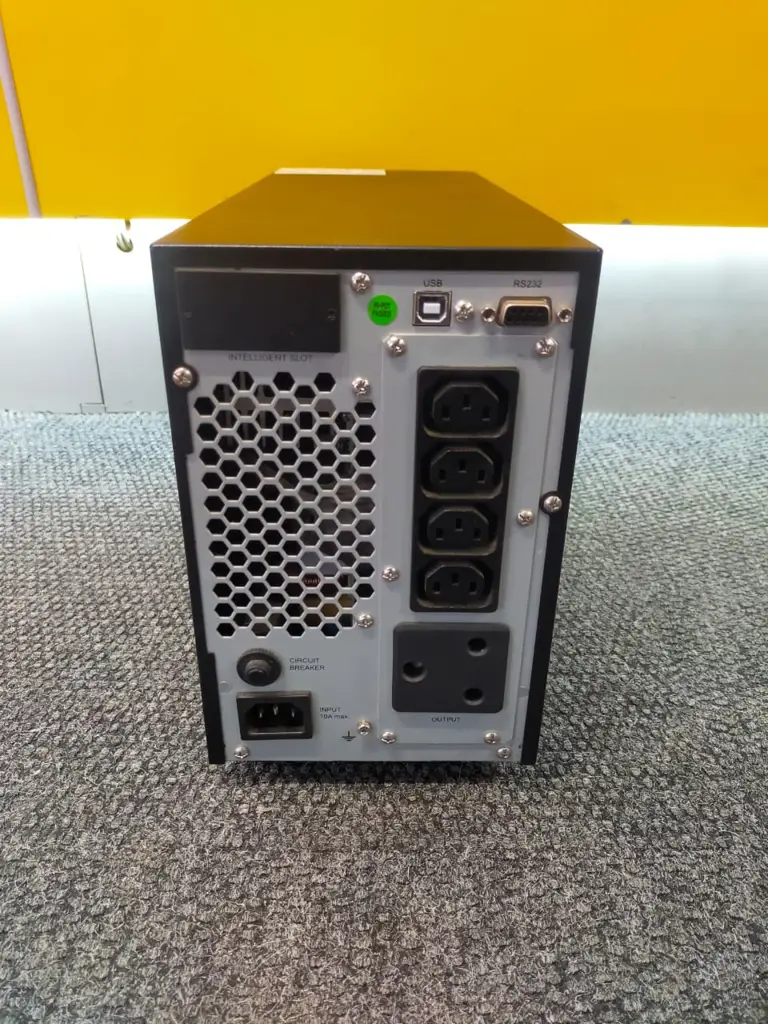

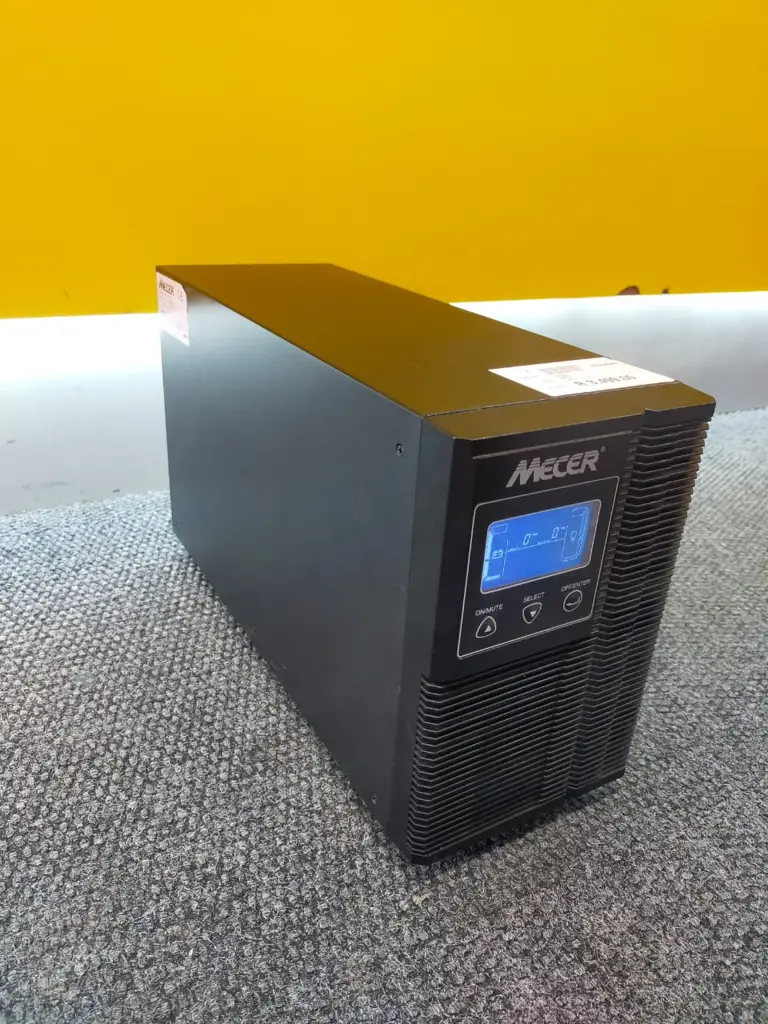

Mecer Winner Pro 2000Va (2000Va/1600W) On-Line Tower Ups (Uninterruptable Power Supply)

Features True double-conversion online UPS Wide input voltage range (110-300 VAC) Input power factor correction 0.99 Output power factor 0.8 Converter mode available ECO mode operation for energy saving (only available for 1-3KVA) Generator compatible Smart SNMP works well with either USB or RS-232 together (SNMP NETWORK CARD need to be purchased separately) Back Time (Minutes) 25% Load 400W: 21 minutes 50% Load 800W: 7 minutes 75% Load 1200W: 4 minutes 100% Load 1600W: 2 minutes Note: Data given are the average values, not the minimum values. A UPS is not designed to provide continuous power, merely a window period that allows a computer or other user to finalise the work at hand and shut down. It's ability to do this is dependent on the number of devices connected to the UPS. To establish what you can and cannot connect, calculate the total wattage you need to supply and ensure that the UPS you purchase meets that requirement. Specifications Colour: Black Phase: Single phase with ground Capacity: 2000 VA / 1600 W INPUT Voltage Range Low Line Transfer: 160 VAC/140 VAC/120 VAC/110 VAC 5% (Ambient Temp.<35 C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) Low Line Comeback: 175 VAC /155 VAC/ 135 VAC /125 VAC 5 % (Ambient Temp.<35 C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) High Line Transfer: 300 VAC 5 % High Line Comeback: 290 VAC 5 % Frequency Range: 40Hz ~ 70 Hz Power Factor: 0.99 @ nominal voltage OUTPUT Output Voltage: 200/208/220/230/240 VAC AC Voltage Regulation (Batt. Mode): 1% Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz Frequency Range (Batt. Mode): 50 Hz 0.25 Hz or 60Hz 0.3 Hz Current Crest Ratio: 3:1 Harmonic Distortion: 3 % THD (Linear Load), 6% THD (non-linear load) Transfer Time AC Mode to Batt. Mode: Zero Inverter to Bypass: 4 ms (Typical) Waveform (Batt. Mode): Pure Sinewave EFFICIENCY AC Mode: 89% Battery Mode: 87% BATTERY Battery Type: 12 V / 9 Ah Numbers: 4 Typical Recharge Time: 4 hours recover to 90% capacity Charging Voltage: 54.7 VDC 1% INDICATORS LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions ALARM Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding PHYSICAL Dimension, D x W x H (mm): 397 x 145 x 220 Net Weight (kgs): 17 ENVIRONMENT Humidity: 20-90 % RH @ 0- 40 C (non-condensing) Noise Level: Less than 50dB @ 1 Meter MANAGEMENT Smart RS-232/USB: Supports Windows 2000/2003/XP/Vista/ 2008, Windows? 7/8, Linux, Unix, and MAC Optional SNMP (SNMP NETWORK CARD need to be purchased separately): Power management from SNMP manager and web browser NOTE 1: Derate to 80% of capacity in CVCF mode or when the output voltage is adjusted to 200/208VAC. NOTE 2: If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m For more information contact Enock at 0680725360
